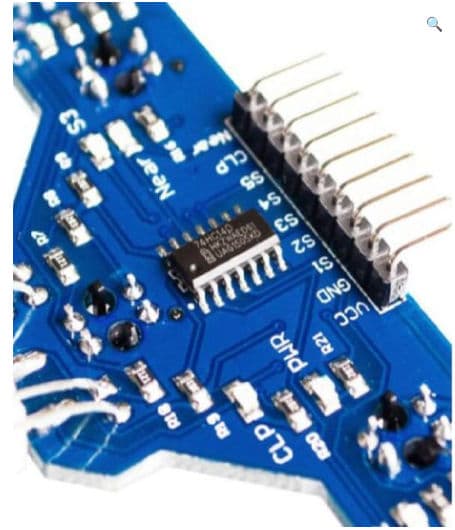

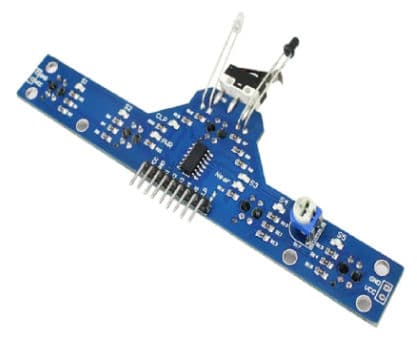

BFD-1000 Five Channel Infrared Tracking Module Tracing Sensor

The 5 Channel Line Tracking Sensor Module (BFD-1000) is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily. BFD-1000 is specifically designed as a black line (white). XunQu is especially suitable for the complex of black and white lines and cross black and white line detection. It has 6 high-sensitivity infrared sensors (5 escape patrols and 1 road) for the recognition of black and white lines accurately. It has the following functions and features: 1. BFD – 1000 integrated no. 5 high sensitivity tracking sensor for the environmental impact of small, can accurately track complex black lines (white lines); for the simple black line, tracking is more comfortable. 2. BFD – 1000 integrated infrared barrier sensors; escape distance can be regulated through the slide rheostat. 3. BFD–1000 has a specially designed touch detection sensor, so the design of the robot is more simple. 4. BFD – 1000 all of the output signal to a digital signal (v), conveniently connected with MCU. 5. All sensor output state BFD – 1000 have LED lights as instructions for convenient debugging. 6. BFD – 1000 support voltage of 3.0-5.5 V meets the demand of most systems. 7. Using the high sensitivity of the sensor, the tracking range is between 0.5 mm and 40 mm; any change doesn't need to do any adjustment. Note: Product image may vary in terms of design. Features: 1. 5-channel high-sensitivity sensor 2. High accuracy for tracking the black line. 3. Distance sensor at the front; distance can be adjusted 4. Special touch sensor design, making the robot design simple 5. Digital output signal 6. Indicator LEDs Package Includes: 1 x BFD-1000 Five Channel Infrared Tracking Module
