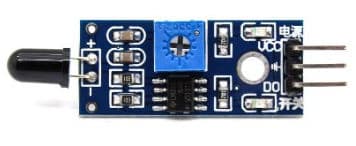

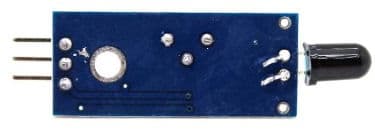

This tiny Flame Sensor Infrared Receiver Module Ignition Source Detection Module is Arduino compatible and can be used to detect the flame or wavelength of the light source within 760 nm~1100 nm. It is also useful for lighter flame detection at a distance of 80 cm.
The greater the flame, the farther the test distance. It has a detection angle of 60° and is very sensitive to the flame spectrum.
It produces the one-channel output signal at the D0 terminal for further processing, like an alarm system or any switching system. The sensitivity is adjustable with the help of the blue potentiometer given on the board.
Features:
Indicator light: a green one for the switch and a red one for power.
Built in a potentiometer for sensitivity control.
Onboard signal output indication: the output effective signal is high; at the same time the indicator lights up, and the output signal can directly connect to microcontroller IO.
Can detect fire or wavelength in 760 ~ 1100 nm within the scope of the light source.
The detection angle is about 60 degrees, and the flame spectrum is especially sensitive.
The flame of the most sensitive sensors is also a response, generally used for fire alarm purposes.
Package Includes:
1 x Flame sensor infrared receiver module ignition source detection module
