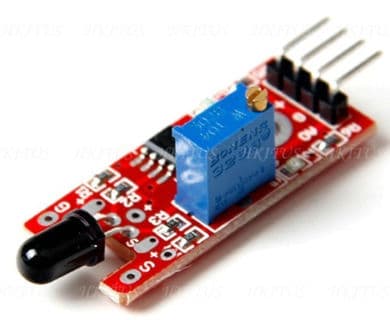

The Flame Sensor Module can detect flames in the 760–1100 nanometer wavelength range. Small flames like a lighter flame can be detected at roughly 0.8 m. The detection angle is roughly 60 degrees, and the sensor is particularly sensitive to the flame spectrum.
An on-board LM393 op-amp is used as a comparator to adjust the sensitivity level. The sensor has a digital and analog output, and sensitivity can be adjusted via the blue potentiometer.
This Flame Sensor Module is used to detect fire/flame sources or other light sources of the wavelength in the range of 760 nm – 1100 nm. It is based on the YG1006 sensor, which is a high-speed and highly sensitive NPN silicon phototransistor. Due to its black epoxy, the sensor is sensitive to infrared radiation.
The sensor can be a great addition to a firefighting robot; it can be used as the robot's eyes to find the fire source. When the sensor detects a flame, the signal LED will light up and the D0 pin goes LOW.

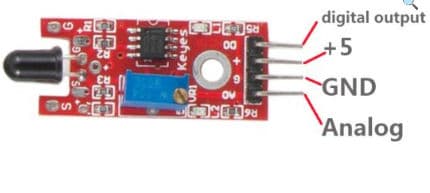

The module has 2 outputs: analog, which gives a real-time voltage output signal on thermal resistance, and digital, which allows temperature thresholds to be set via a potentiometer.
Features:
1. High Photosensitivity
2. Fast Response Time
3. Sensitivity adjustable
4. Detects a flame or a light source of a wavelength in the range of 760 nm-1100 nm.
5. Detection range: up to 100 cm.
6. Adjustable detection range.
7. Detection angle of about 60 degrees; it is sensitive to the flame spectrum.
8. Comparator chip LM393 makes module readings stable.
9. Operating voltage 3.3V-5V.
10. Digital and Analog Output.
11. Power indicator and digital switch output indicator.
Package Includes:
1 x Flame Sensor Module
Tutorial:
Arduino Flame Sensor Interface: Theory Circuit. com/arduino-flame-sensor-interface/
