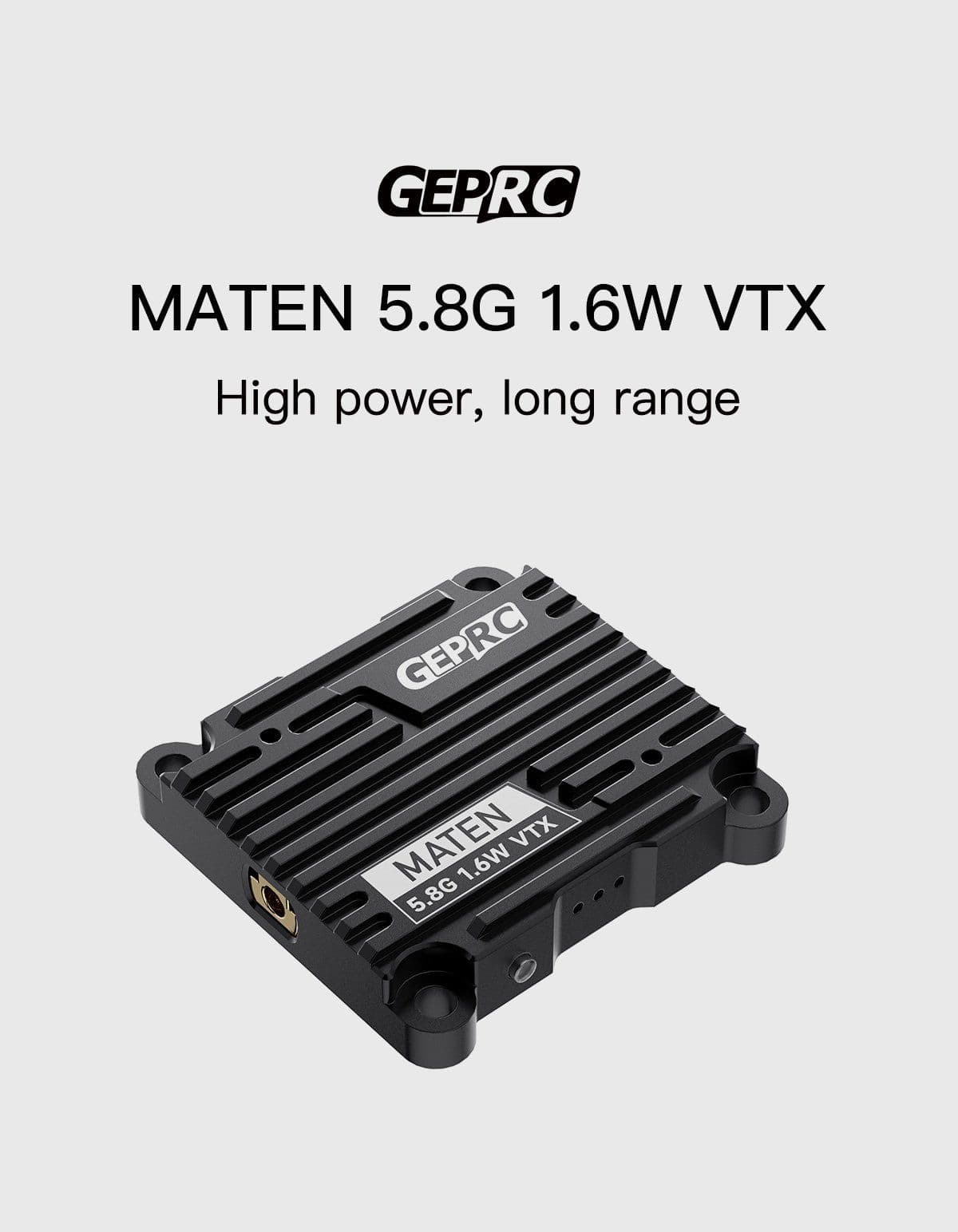

GEPRC MATEN 5.8G 1.6W Video Transmitter

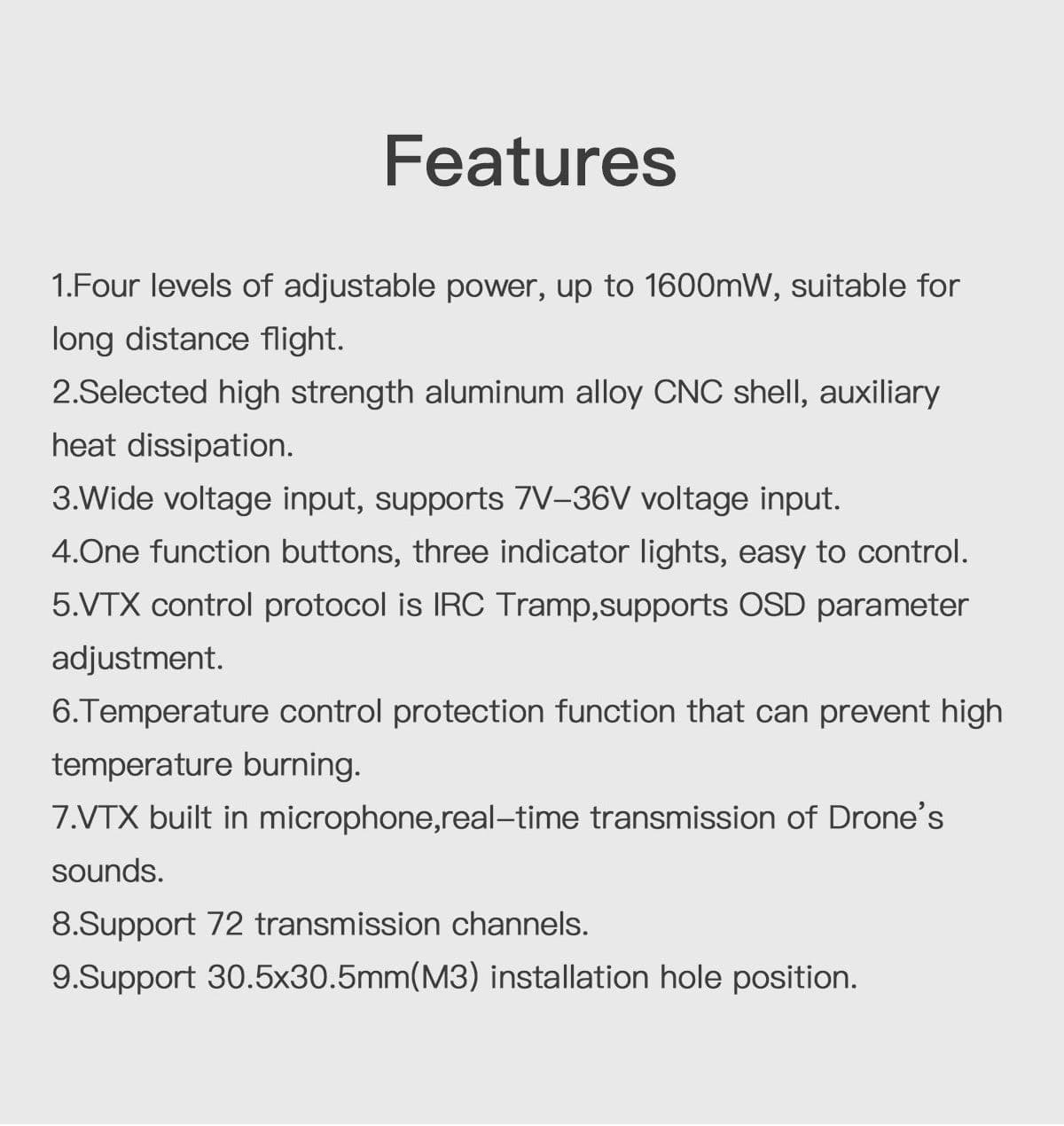

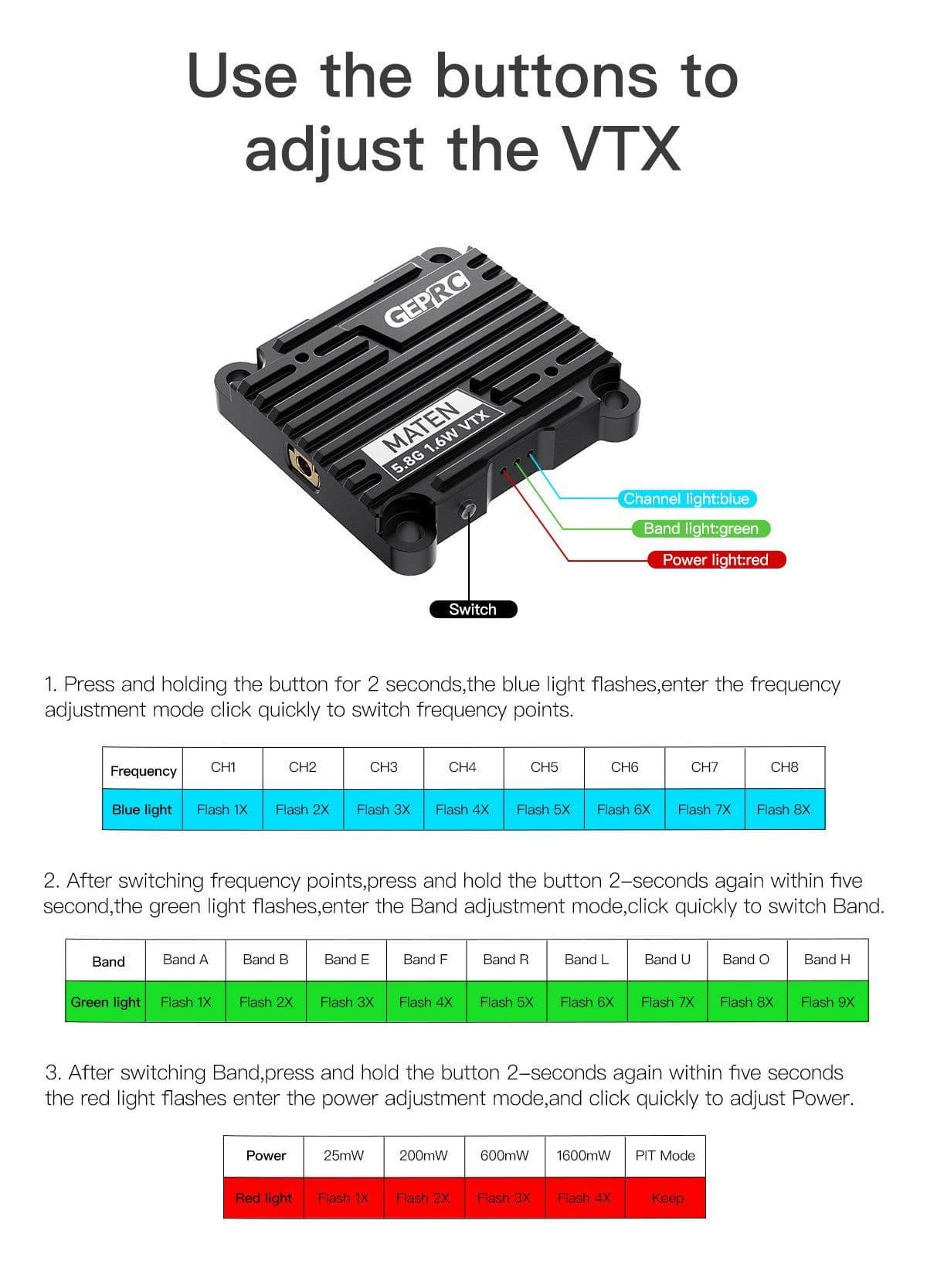

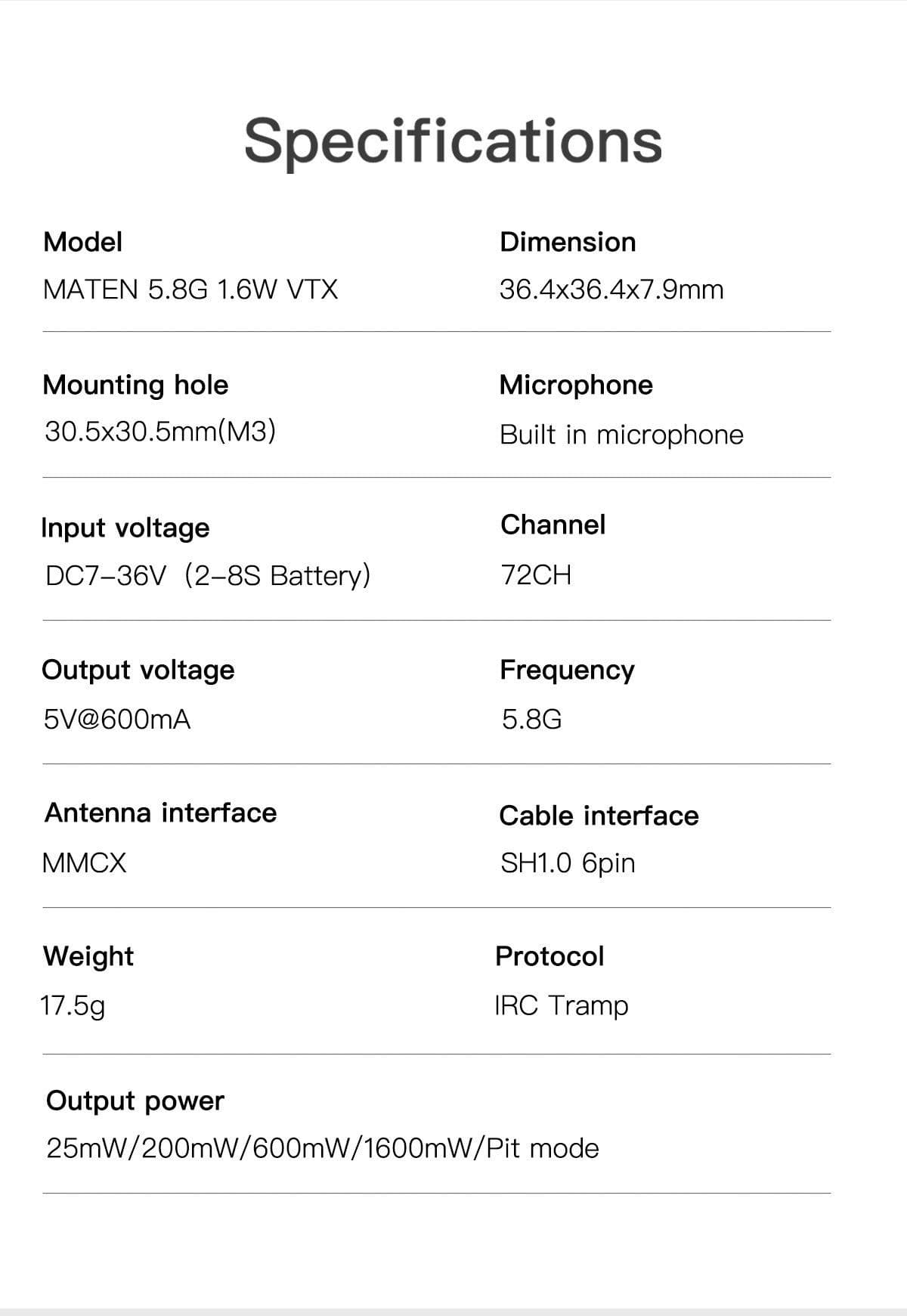

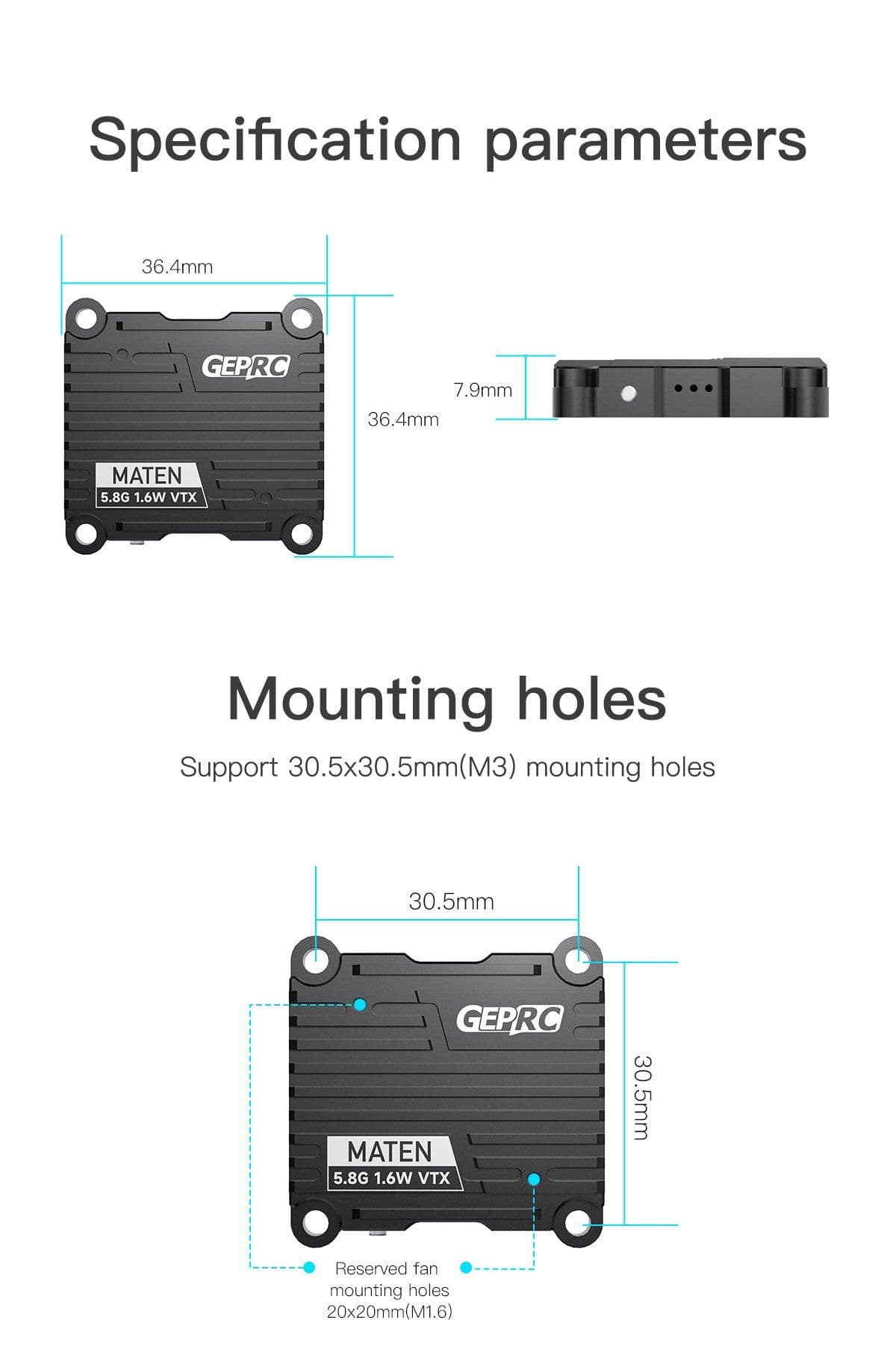

Summary The GEPRC MATEN 5.8G 1.6W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 4 adjustable power levels and a maximum power of up to 1600 mW. The transmission signal is very stable, and the penetration ability is excellent. The GEPRC MATEN 5.8G 1.6W VTX uses a high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design stronger impact resistance and better heat dissipation performance. It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters. It has a wide voltage input of 7-36V and a temperature control protection function to prevent overheating and burning. Support a 30.5×30.5 mm (M3) installation hole position. Features Four levels of adjustable power, up to 1600 mW, suitable for long-distance flights. Selected high-strength aluminum alloy CNC shell, auxiliary heat dissipation. Wide voltage input, supporting 7V-36V voltage input. One function button, three indicator lights, easy to control. The VTX control protocol is IRC Tramp and supports OSD parameter adjustment. Temperature control protection function that can prevent high-temperature burning. VTX built-in microphone: real-time transmission of the drone's sounds. Supports 72 transmission channels. Support a 30.5×30.5 mm (M3) installation hole position. Specifications of GEPRC MATEN Video Transmitter Model: MATEN 5.8G 1.6W VTX Dimension: 36.4×36.4×7.9 mm Mounting hole: 30.5×30.5 mm (M3) Output power: 25 mW/200 mW/600 mW/1600 mW/Pit mode Frequency: 5.8G Channel: 72CH Input voltage: DC 7-36V (2-8S Battery) Output voltage: 5V@600mA Protocol: IRC Tramp Antenna interface: MMCX Cable interface: SH1.0 6-pin Video format: PAL/NTSC Microphone: Built-in microphone Weight: 17.5g Notes Install the antenna before use. To prevent overheating, provide constant airflow and a well-ventilated environment. Install a cooling fan if operating in confined conditions. The 5V output is for camera/cooling fan use only! Do not connect the power input/battery to 5V out. Serious damage will occur to VTX. Includes 1 out. EPRC MATEN 5.8G 1.6W VTX 1 x MMCX Copper tube antenna 1 x MMCX to SMA connector 1 x sh1.0 6P Connecting cable 5 x M3*7 screws 5 x M3*8 screws 5 x M3 x 10 hexagon 5 x M3*5 isolation columns 5 x M3 nylon nut 1 x product description
