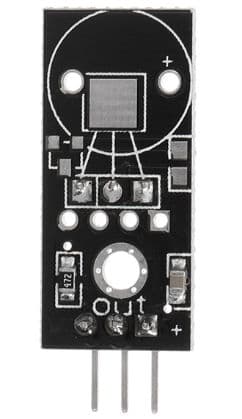

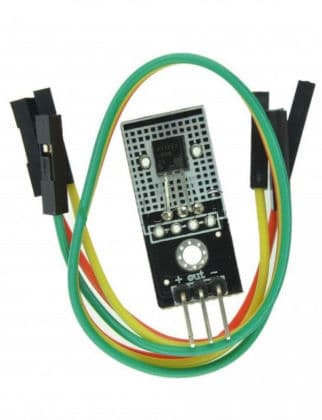

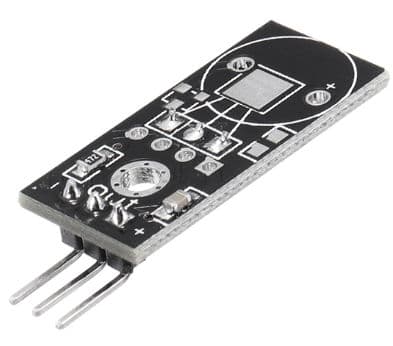

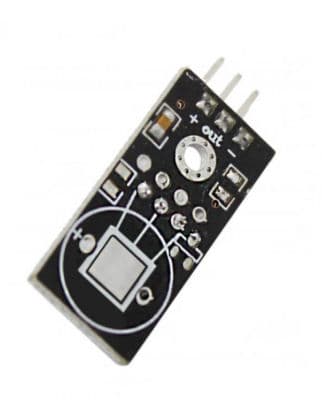

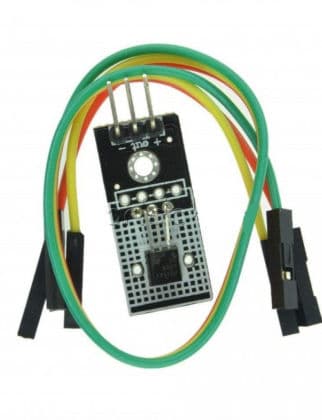

This is the LM35D Analog Temperature Sensor Module + Cable.
This LM35D analog temperature sensor module is based on the semiconductor LM35 temperature sensor. The LM35 linear temperature sensor module is useful in detecting ambient air temperature. Sensitivity is 10 mV per degree Celsius. The output voltage is proportional to the temperature.
LM35 is a precision IC temperature sensor with its output proportional to the temperature (in °C). The sensor circuitry is sealed, and therefore it is not subjected to oxidation and other processes. With LM35, the temperature can be measured more accurately than with a thermistor!!!
It also possesses low self-heating and does not cause more than a 0.1 °C temperature rise in still air. The operating temperature range is from -55°C to 150°C. The output voltage varies by 10 mV in response to every °C rise/fall in ambient temperature, i.e., its scale factor is 0.01 V/°C.
It is commonly used as a temperature measurement sensor. It includes thermocouples, platinum resistance, thermal resistance, and temperature semiconductor chips, which are commonly used in high-temperature measurement thermocouples. The LM35D linear temperature sensor and sensor-specific expansion of the Arduino board, in combination, can be very easy to achieve.
Wiring Instructions:
“+”: Positive power supply
“–“: Negative one
“out”: pick AD converter module analog signal input terminal or directly connected to the multimeter to measure
Features:
1. Based on the semiconductor LM35 temperature sensor
2. Useful in detecting ambient air temperature
3. Calibrated directly in ° Celsius (Centigrade)
4. Linear + 10 mV/°C Scale Factor
5. 0.5°C Ensure accuracy (at +25°C)
6. Low power consumption, less than uA
7. Low output impedance, 1 mA current through only 0.1Ω
8. With screw holes for easy installation and fixing. Aperture 2.6mm
Package Includes:
1 x LM35D Analog Temperature Sensor Module.
3 X 20 cm DuPont line (random color).
