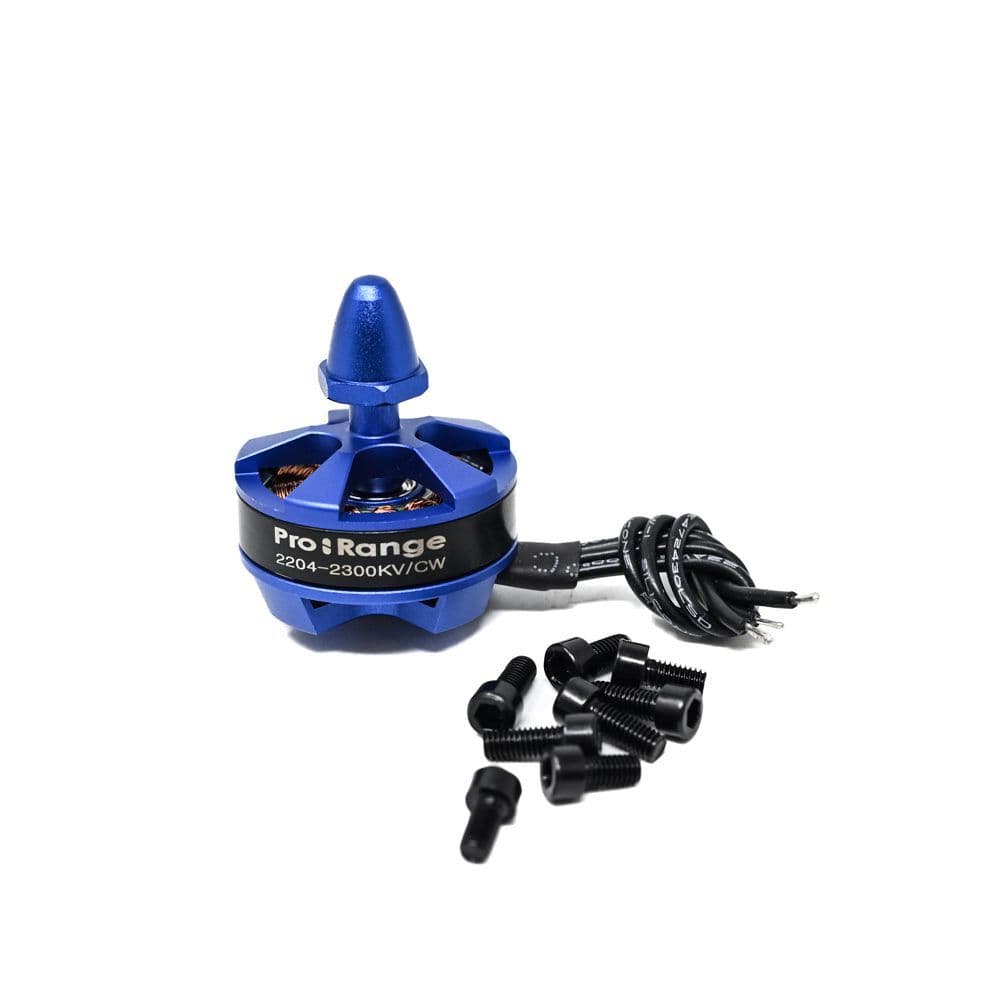

The Pro-Range-D2204-2300KV CW Brushless Drone Motor is a high-performance motor engineered for FPV racing drones and multirotor applications. With a 2300KV rating, this Pro-Range-D2204-2300KV CW Brushless Drone Motor delivers high rotational speed and an excellent thrust-to-weight ratio. Compatible with 2-3S LiPo batteries, the D2204 operates efficiently across 7.4V to 11.1V ranges, drawing a load current of 5.8A at 7.4V.
Its robust build supports 5043 propellers, producing a maximum thrust of 408 g with just 117 W power consumption. Designed for optimal efficiency (up to 5.1 g/W), it weighs approximately 25 g, making it ideal for lightweight drone setups. The CW (clockwise) rotation and strong pull power ensure responsive and agile flight performance.
Features:
1. 2300KV high-speed motor for fast response.
2. Efficient performance with up to 5.1 g/W.
3. Supports 2-3S LiPo batteries (7.4V–11.1V).
4. Peak thrust of 408 g with 5043 props.
5. Durable and lightweight at only 25 g.
6. CW rotation for compatible drone setups.
7. Handles load current up to 5.8A.
8. Designed for FPV racing and freestyle drones.
Package Includes:
1 x Pro-Range-D2204-2300KV CW Brushless Drone Motor
1 x Screw set
