RC522 RFID Reader Writer SPI Module with Card & Tag Rated

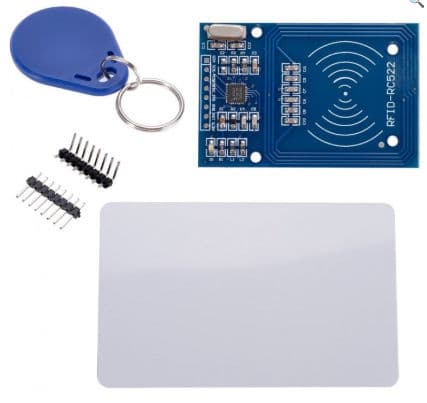

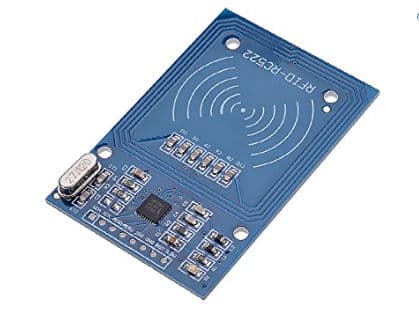

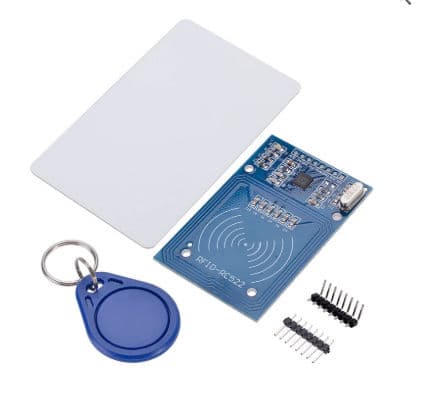

Do you want to know the work of the RFID reader/writer RC522 SPI S50 card and keychain? Then this product is best for you. With this Product, you can detect radio waves produced by a reader to detect the presence of (then read the data stored on) an RFID tag This is an RFID reader/writer RC522 SPI S50 card and keychain, which works on non-contact 13.56 MHz communication and is designed by NXP as a low-power consumption, low-cost, and compact-size read and write chip and is the best choice in the development of smart meters and portable handheld devices. It uses an advanced modulation system, fully integrated at 13.56 MHz with all kinds of positive non-contact communication protocols. Support 14443A compatible answer signal. DSP deals with ISO14443A frames and error correction. This module can fit directly in handheld devices for mass production. The module uses the 3.3V power supply and can communicate directly with any CPU board by connecting through the SPI protocol, which ensures reliable work and good reading distance. Features: 1. Highly integrated analog circuitry to demodulate and decode responses. 2. Supports ISO/IEC 14443 A/MIFARE. 3. Typical operating distance in reading/writing mode up to 50 mm. 4. Supports ISO/IEC 14443 A higher transfer speed communication up to 848 kBd. 5. SPI up to 10 Mbit/s. 6. The FIFO buffer handles 64 bytes sent and received. 7. Flexible interrupt modes. 8. Power-down by software mode. 9. Programmable Timer. 10. 2.5 V to 3.3 V power supply. 11. CRC coprocessor. 12. Internal self-test. Package Includes 1 x RFID-RC522 Reader/Write Module 1 x Standard blank RFID card 2 x A Straight & right-angle header strip 1 x Special-shaped keychain RFID tag Useful Links: Arduino Playground for MFRC522: https://playground.arduino.cc/ Arduino RC522 RFID Door Unlock: https://www.instructables.com/Arduino-RC522-RFID-Door-Unlock/ Access Control System based on Arduino: https://www.edn.com/wp-content/uploads/media-1047568-ss1282-adi-pg-59.gif Github Source code for various targets like PIC, AVR, ARM, and such: https://github.com/search?utf8=%E2%9C%93&q=MFRC522&type=Repositories&ref=searchresults
