SeeedStudio Grove Piezo Vibration Sensor

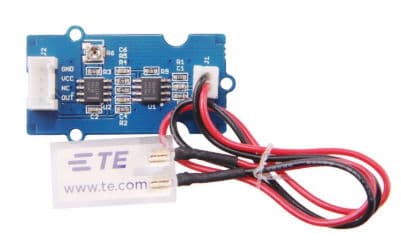

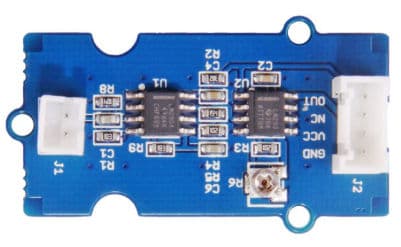

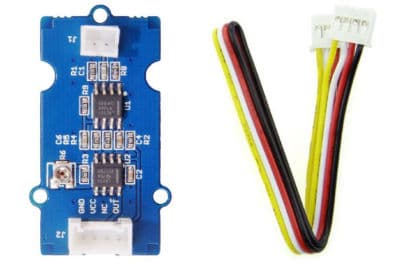

The Grove-Piezo Vibration Sensor is suitable for measurements of flexibility, vibration, impact, and touch. The module is based on the PZT film sensor LDT0-028. When the sensor moves back and forth, a certain voltage will be created by the voltage comparator inside of it. Therefore, it outputs high & low levels. In spite of the fact that it has a high receptivity for strong impacts, a wide dynamic range (0.001 Hz~1000 MHz) also guarantees excellent measuring performance. Finally, you can adjust its sensitivity by adjusting the potentiometer with a screw. Features: 1. Standard grove socket 2. Wide dynamic range: 0.001 Hz~1000 MHz 3. Adjustable sensitivity 4. High receptivity for strong impact Applications: 1. Vibration Sensing in Washing Machine 2. Low Power Wake-up Switch 3. Low-Cost Vibration Sensing 4. Car Alarms 5. Body Movement 6. Security Systems Useful Links: Tutorial: https://wiki.seeedstudio.com/Grove-Piezo_Vibration_Sensor/ Project Links: Seat Monitor: https://www.hackster.io/momososo/seat-monitor-seat-sensor-4288dc Grove Starter Kit For Arduino – Piezo Vibration Sensor: https://www.hackster.io/trduunze/grove-starter-kit-for-arduino-piezo-vibration-sensor-92c531 Package Includes: 1 x Grove – Piezo Vibration Sensor
