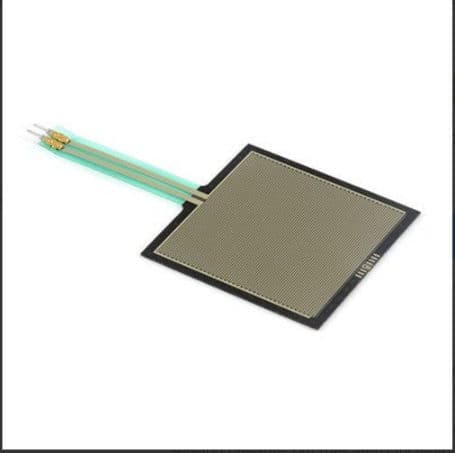

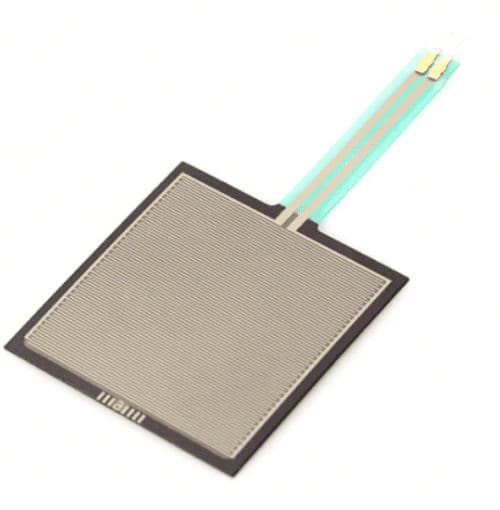

Square Force-Sensitive Resistor
The FSR 400 series is part of the single-zone Force Sensing Resistor family. The model 406 FSR is a single-zone Force Sensing Resistor optimized for use in human touch control of electronic devices such as automotive electronics and medical systems and in industrial and robotics applications. FSRs are two-wire devices. They are robust polymer thick film (PTF) sensors that exhibit a decrease in resistance with an increase in force applied to the surface of the sensor. It has a 39.6mm square active area and is available in 4 connection options.
This FSR 406 force sensor will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR, its resistance will be larger than 1M. This FSR can sense applied force anywhere in the range of 100 g-10 kg. Two pins extend from the bottom of the sensor with a 0.1" pitch, making it breadboard friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.
Also check the Spectra Symbol 12.7 mm circular force sensor. It is a force-sensitive resistor with a round, 0.5 diameter sensing area. The resistance of this FSR varies based on the amount of pressure applied to its sensing area. When no pressure is applied, its resistance is larger than 1M?. The FSR can sense forces in the range of 100g to 10kg.
