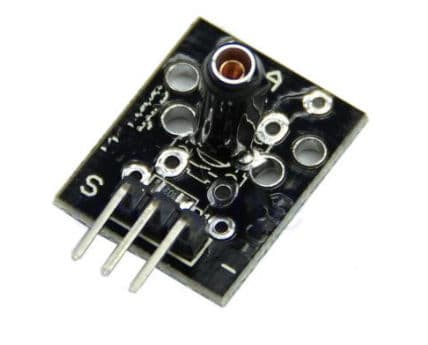

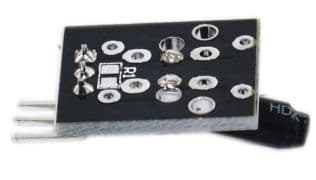

This switch at rest is in an open (off) state; when it is subjected to an external force, touched with an appropriate shaking force, or its movement speed reaches an appropriate centrifugal force (eccentric heart), the conductive pins will be in an instantaneous conduction state to change the electrical characteristics, and when the external force disappears, the electrical characteristics will recover to the open (off) state.
This switch by default is in an OFF resting state. When an external force is applied to achieve a proper vibration, the conductive pin will momentarily conduct and change to ON status, make changes in electric property, and disappear when the external force is withdrawn. It's omnidirectional in nature, meaning any angle can trigger the sensor.
Pin Connection
Pin—⇔ GND, connect to GND of the Arduino
Middle Pin ⇔ +5 v, connect to Arduino +5
Pin S ⇔ signal, connect to Arduino pin 10
Features:
1. No direction; any angle can trigger the work.
2. Sensitivity switches can be selected for the trigger sensitivity according to circuit requirements.
3. This switch is suitable for the trigger of the small current circuit.
Package Includes:
1 x Vibration Switch Module
