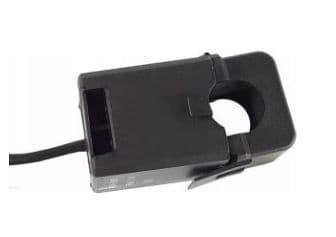

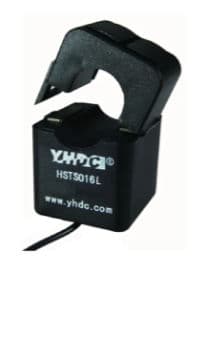

The HST016L current transducer can be used to measure direct, alternating, and pulsating currents. It was designed on the principle of an open loop, and there is galvanic isolation between the primary conductor and the secondary circuit. Thanks to its design, the openable core is ideal for installation on a cable without breaking the primary circuit. The hole diameter is 16 mm. The output of the transducer reflects the real wave of the conductor. The advantage of this sensor is its low power consumption, which is particularly advantageous when measuring high currents. The length of the cables exiting the transformer is 50 cm (red, black, green, and white).
Wiring diagram:
Red: +15V
Black: -15V
Yellow: Vout
White: 0V
Note: Images shown may vary from the actual product in terms of values printed over it
Features:
1. Transformer type: open/split core
2. Sensor output: voltage
3. Cable: 50 cm
4. Fire resistance: UL94-V0
5. Working temperature: -10 ℃ ~ +70℃
6. Storage temperature: -25 ℃ ~ +70℃
7. Frequency: DC ～ 25 kHz
8. Dielectric strength: 2.5 KV 50 Hz 1 min
9. Rated input: ± 200A
10. Measured range: ± 200 A
11. Rated output: 4V
12. Accuracy: 1%
13. Linearity: 1%
14. Supply voltage (± 5%): 4V
15. Power consumption: ≤ ± 12 mA
16. Hole diameter (Ø) – 16mm
17. Response time: ≤ 5 μs
18. Weight: 81 g
1 x YHDC HST016L 200A 4V Hall Split Core Current Sensor
