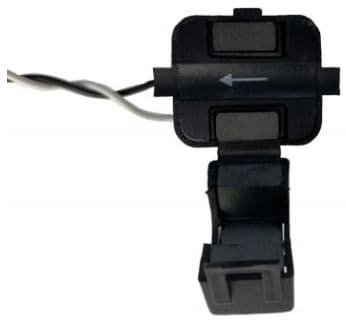

YHDC SCT010 50A: A split-core current transformer is completely compatible with foreign products and built-in TVs. Purpose: Applicable for the current measuring, monitoring, and protection of AC motors, lighting equipment, and air compressors.
Features:
1. Material of core: Ferrite
2. Working voltage: Phase voltage ≤ 720V
3. Working temperature: -25℃~+60℃
4. Storage temperature: -30℃~+90℃
5. Frequency range: 50 Hz~1 KHz
6. Input: Bare conductor
7. Cable Length: 40 cm
8. output 50A: mA
9. Whole Diameter: 10
10. Dimensions (L x W x H) mm: 23 x 25 x 40
11. Weight: 35g
Package Includes:
1 x YHDC SCT010 50A:50mA Split Core Current Transformer
