YHDC SCT016S 200A 100mA Split Core Current Transformer

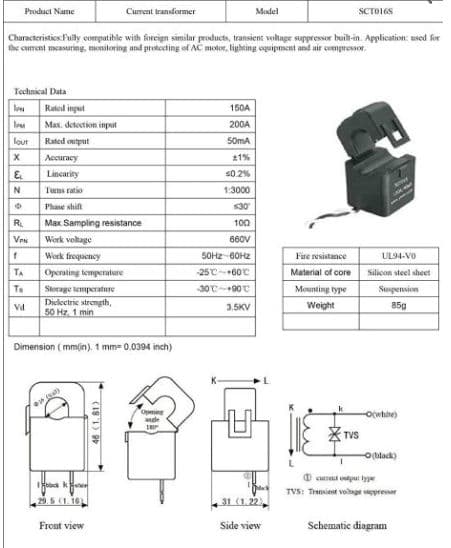

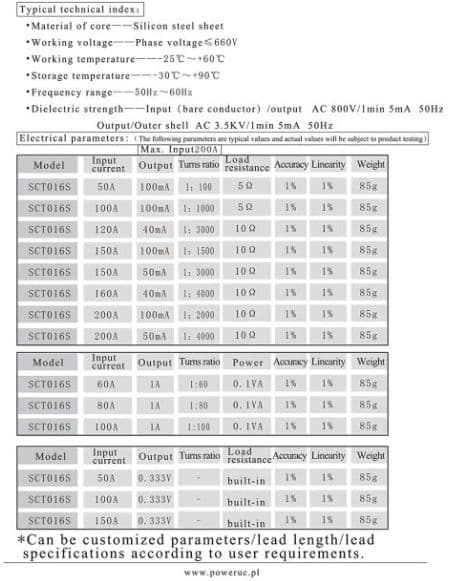

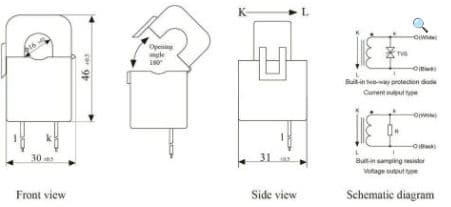

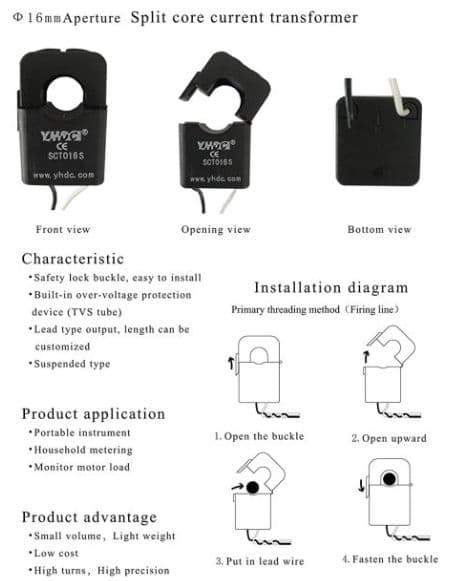

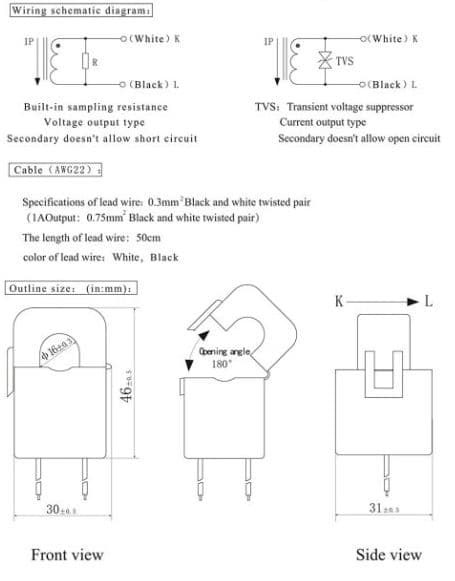

YHDC SCT016S 200A:100m A split-core current transformer is completely compatible with foreign products and built-in TVs. Purpose: Applicable for the current measuring, monitoring, and protection of AC motors, lighting equipment, and air compressors. Features: 1. Material of core: Ferrite 2. Working voltage: Phase voltage ≤ 720V 3. Working temperature: -25℃～+60℃ 4. Storage temperature: -30℃～+90℃ 5. Frequency range: 50 Hz～1 KHz 6. Input: Bare conductor 7. Cable Length: 40 cm 8. Output: 200A:100m A 9. Whole Diameter: 15 10. Dimensions (L x W x H) mm: 29 x 30 x 46 11. Weight: 85g Package Includes: 1 x YHDC SCT010 20A: 20mA Split Core Current Transformer
