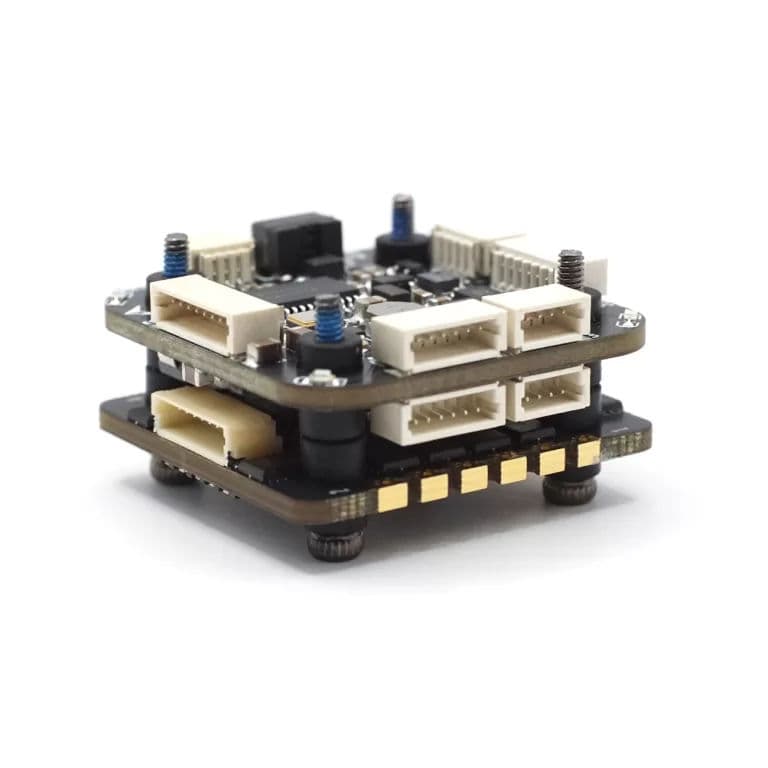

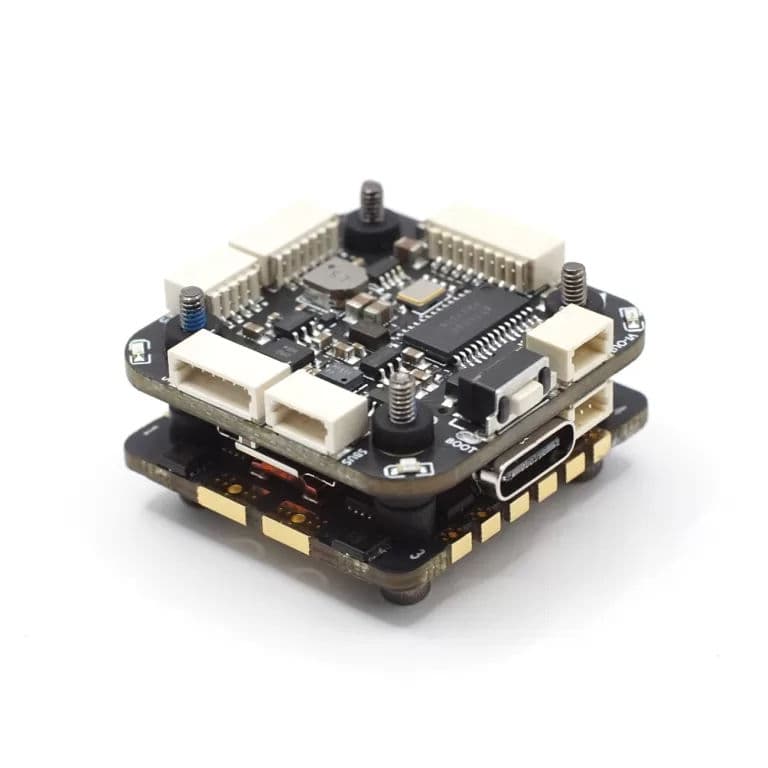

MicoAir F405 v2 Mini Flight Controller Board with 33A ESC Stack

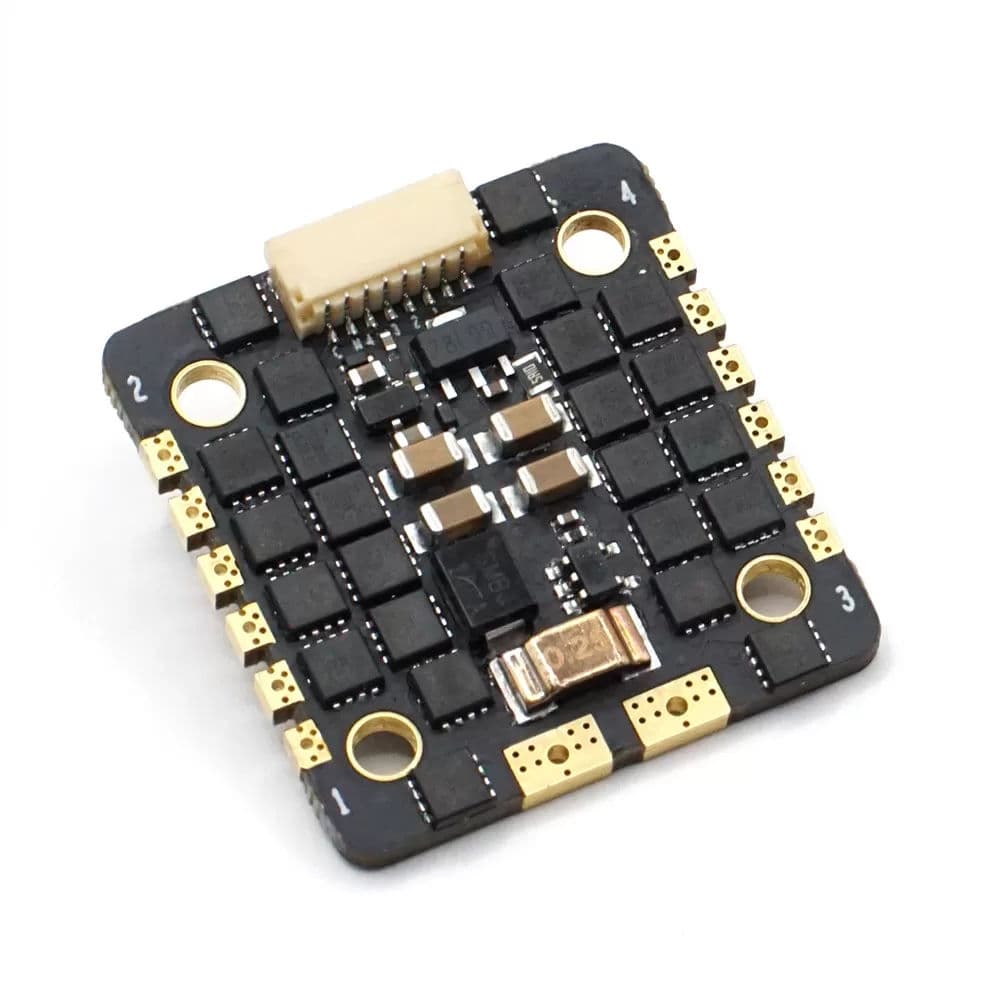

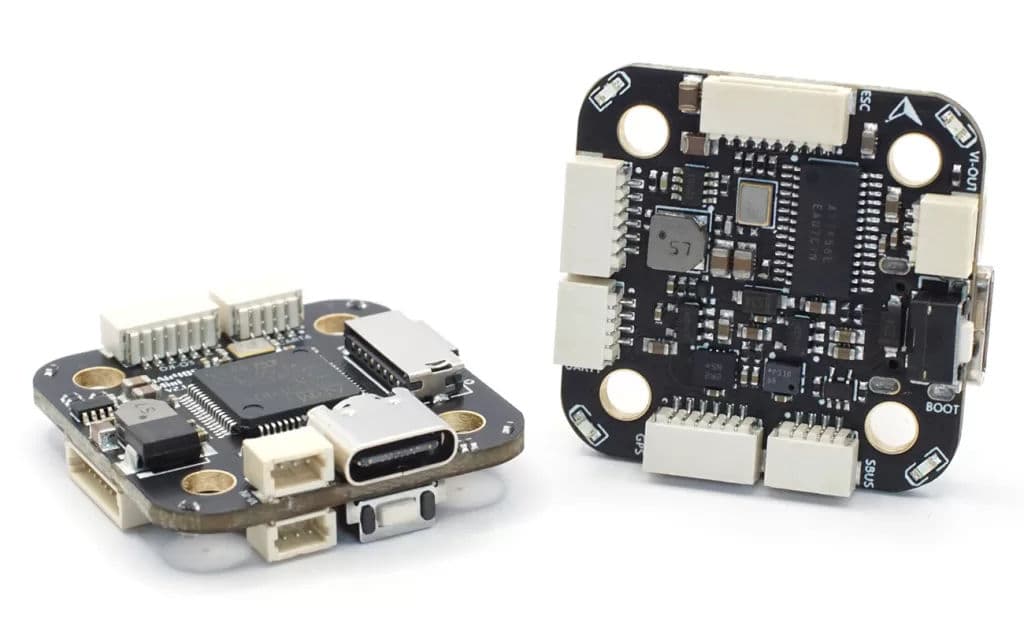

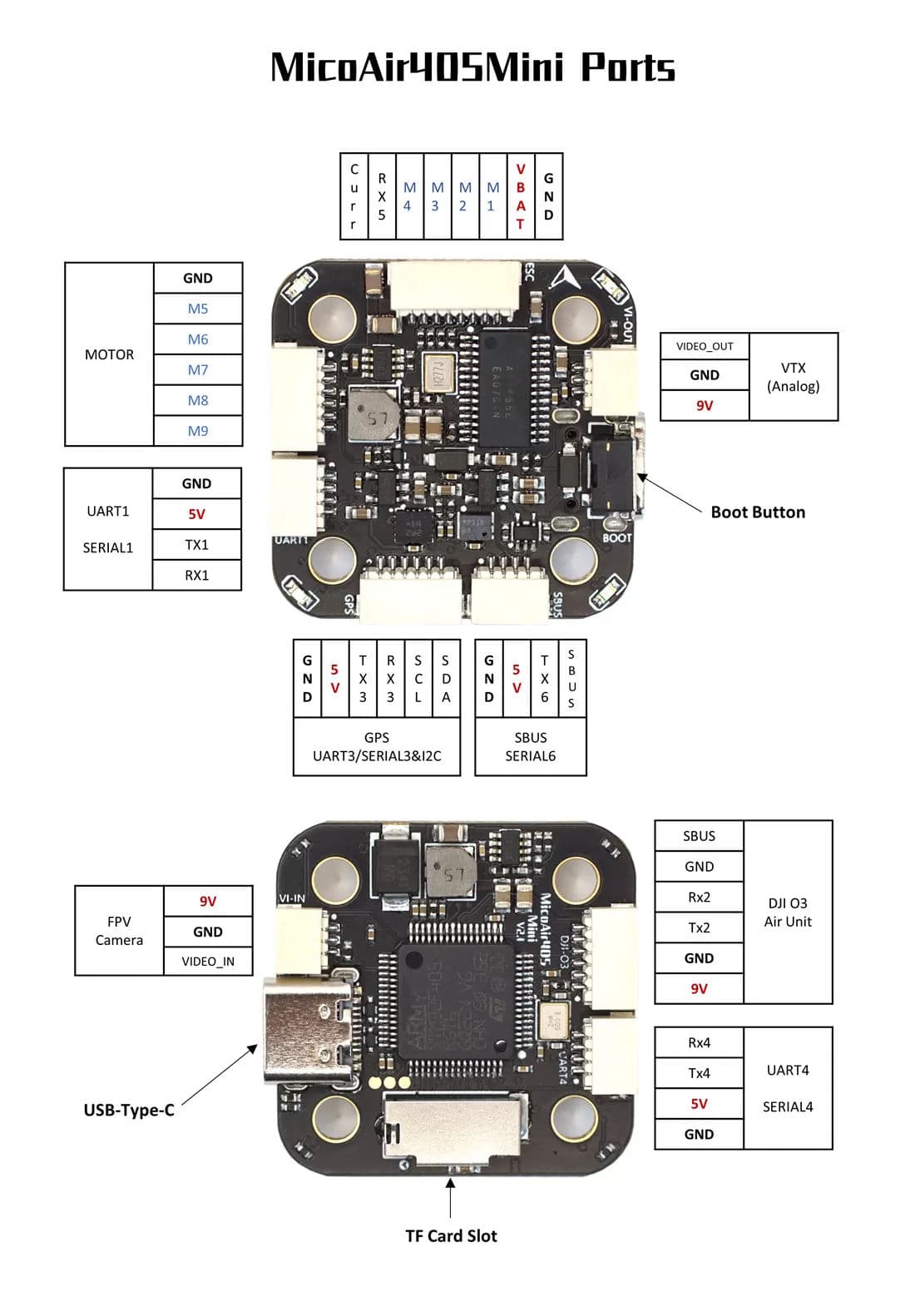

Flight Controller Specifications The MicoAir F405 Mini Flight Controller features high-performance components suitable for advanced stabilization and autonomous flight: Processor: Powered by an STM32F405RGT6 MCU running at 168MHz with 1MB Flash. Sensors: Equipped with a BMI270 IMU (Gyro/Accelerometer) and a DPS310 Barometer for precise altitude control. Connectivity: Includes 6 UARTs, 1 I2C bus for external compasses, and a USB Type-C interface. Output: Features 9 PWM outputs; channels 1-8 support DShot. Power (BEC): Provides dual power outputs: 5V at 2.5A and 9V at 2.5A, the latter supporting DJI O3 Air Unit connections. Storage: Includes a MicroSD card slot for Blackbox logging, missions, or terrain maps. Dimensions: The board measures 30 x 30 x 8 mm with a 20 x 20mm mounting pattern and weighs approximately 6g 33A 4-in-1 ESC Specifications The stack is paired with a high-efficiency Bluejay-4IN1-33A ESC: Firmware: Pre-loaded with Bluejay (v0.19.2) and supports a PWM frequency of 48KHz. Performance: Supports a 33A continuous current per motor and is compatible with 2-6S LiPo power inputs. Protocols: Supports DShot300 and DShot600 control signals. Features: Includes a built-in current sensor and a protective TVS diode to absorb voltage spikes during crashes or battery plug-ins. Physical: Dimensions are 29 x 31 x 5.3 mm, weighing just 5g with a standard 20 x 20mm mounting.
