It Supports 8 RC channel with 4 serial port. Various user interfaces are available for programing, reviewing logs, even some apps for smartphones & tablets. It detects and configures all its peripherals automatically.
The benefits of the Pixhawk system include a Unix/Linux-like programming environment, completely new autopilot functions. Sophisticated scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes.
check out : Mini OSD Module For 2.6 APM PIX Pixhawk Flight Control BoardKey Features & Advantages:
Unmatched Control: With 14 PWM/servo outputs and extensive bus interfaces (UART, I2C, SPI, CAN), you have unparalleled control over your drone's every movement.
Failsafe Reliability: The integrated backup power and controller create a robust failsafe system, guaranteeing uninterrupted flights even in unforeseen circumstances.
Adaptive Flight Modes: Seamlessly transition between automatic and manual modes to adapt to various flight scenarios and terrain.
Redundancy for Peace of Mind: Dual power inputs and failover functionality provide added redundancy, ensuring a safe and reliable flight experience.

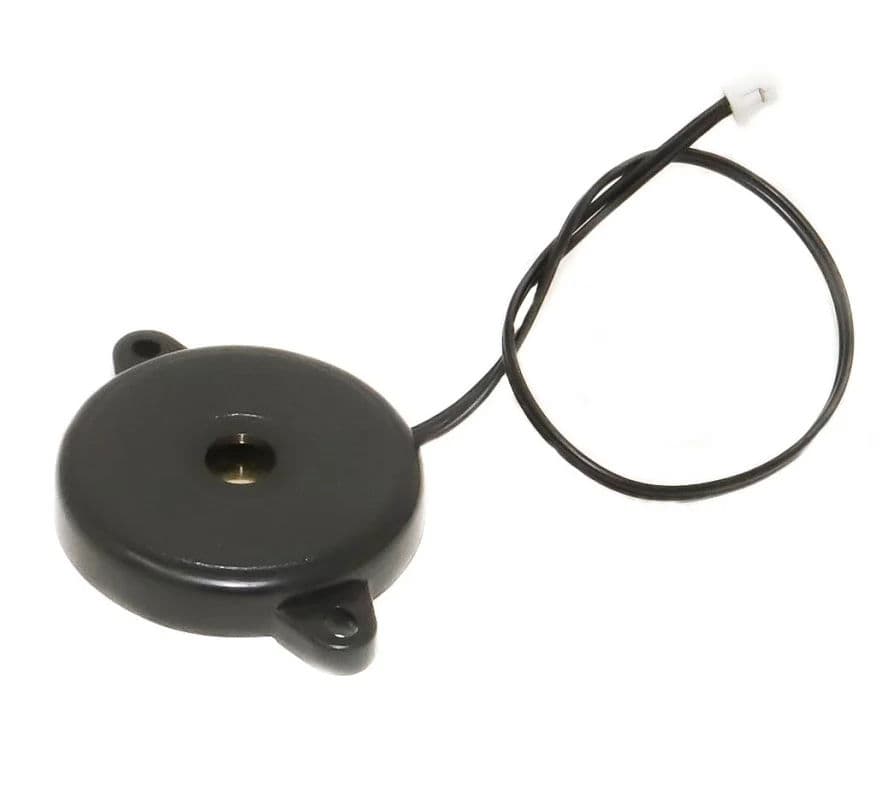

Intuitive User Interface: Multicolor LED lights and a multi-tone buzzer offer real-time feedback, keeping you informed about your drone's status and performance.
Data-Driven Insights: Record valuable flight data on the included micro SD card, allowing you to analyze and optimize your drone's performance.

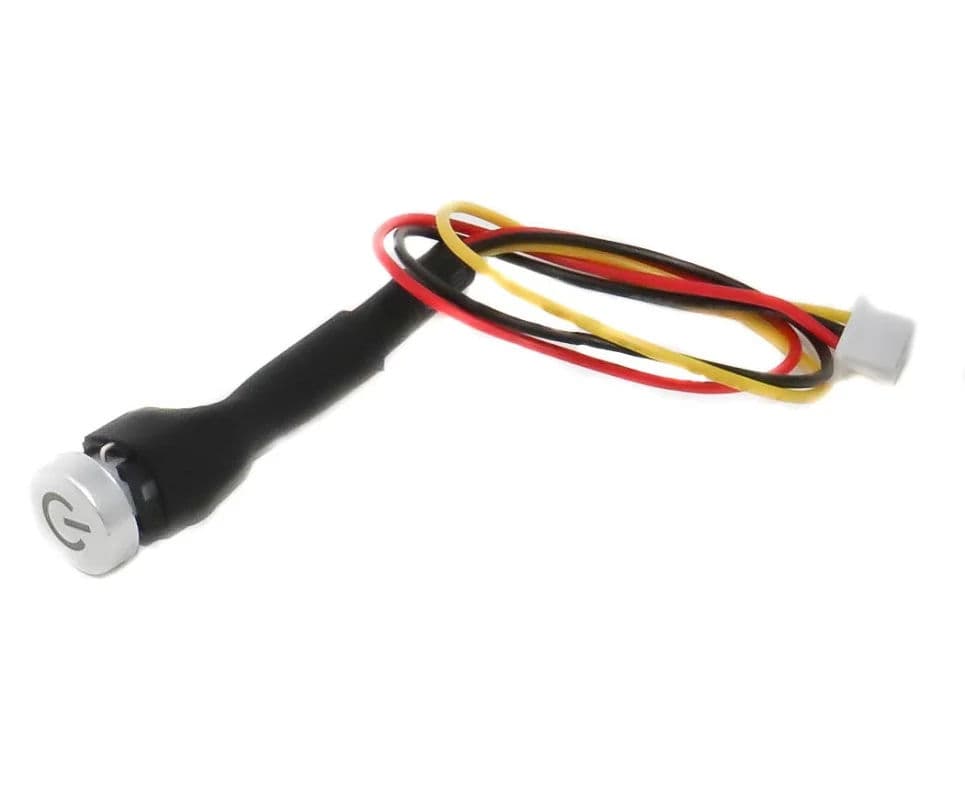

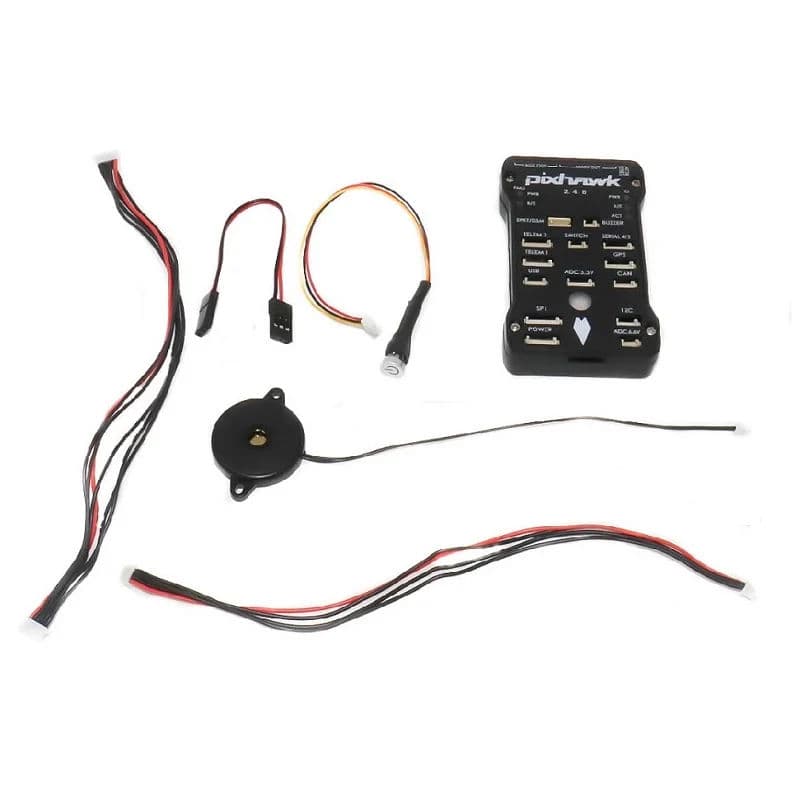

All-Inclusive Kit: The combo set includes everything you need to get started, including an original shell, safety button, buzzer, 16G TF card (preloaded with IO firmware), servo cables, and more.
Technical Specifications:
Microprocessor: 32-bit STM32F427 Cortex M4 with hardware floating-point processing unit (168MHz, 256K RAM) and a 32-bit STM32F103 backup coprocessor.
Sensors: L3GD20 3-axis digital gyroscope, LSM303D 3-axis accelerometer/magnetometer, MPU6000 6-axis accelerometer/magnetometer, and MS5611 precision barometer.
Interfaces: 5 high-voltage compatible UARTs, 2 CAN, Spektrum DSM/DSM2/DSM-X satellite receiver input, Futaba SBUS compatible inputs and outputs, PPM signal input, RSSI (PWM or voltage) input, I2C, SPI, 3.3V and 6.6V ADC input, and an external micro USB interface.
Unlock Your Drone's Full Potential:
Whether you're a professional aerial photographer, a drone racing enthusiast, or a researcher pushing the boundaries of autonomous flight, the Pixhawk 2.4.8 Combo Set empowers you to achieve your goals with confidence and precision. Embrace the future of drone technology and take your flights to new heights with this exceptional kit.
